Monarch MCTC-CTB-A Elevator Car Top Communication Board

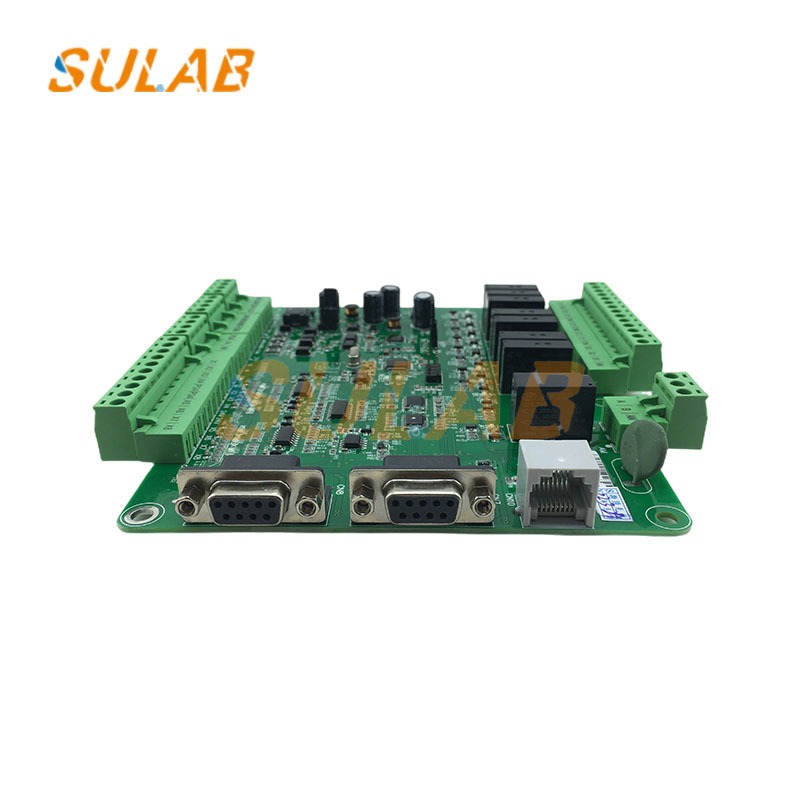

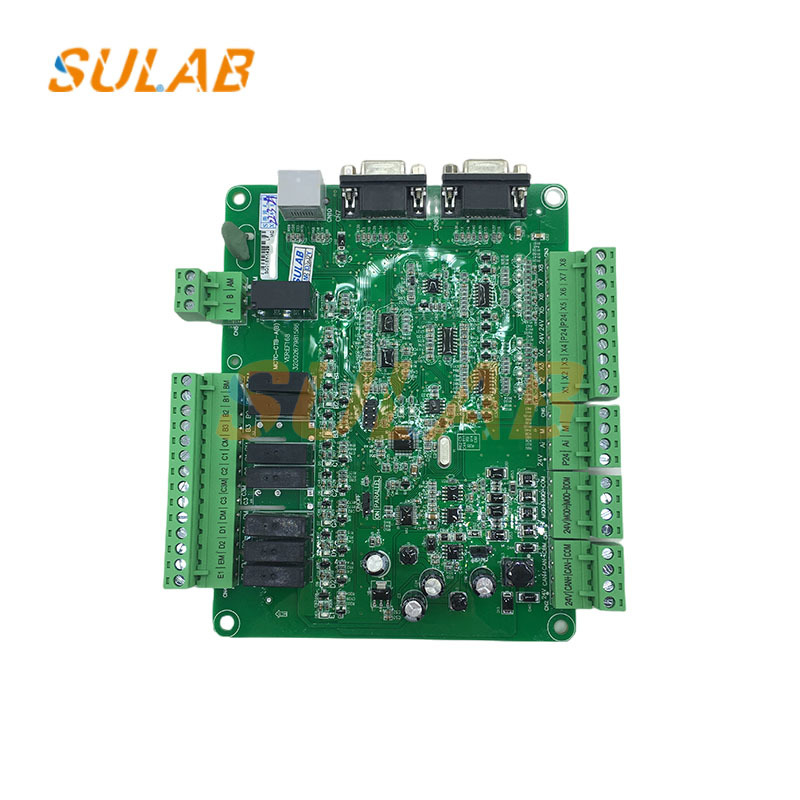

The MCTC-CTB-A from MONARCH is the car control board (car top board) of the NICE3000 elevator integrated controller, designed for reliable elevator communication and control.

• 8 digital inputs for comprehensive signal reception
• 9 relay outputs (7 standard, 9 non-standard) for flexible control
• 1 group of analog inputs for precise measurements
• 485 communication and CAN communication interfaces
• 2 groups of parallel port expansions for additional connectivity

• Through-door control for effective door management
• Analog torque compensation to ensure elevator operation stability
• Processes overload signals and full-load signals for real-time load status feedback
• Bidirectional arrival bell signal output for passenger notification
• Drives communication display boards and in-car command boards for information display and command reception

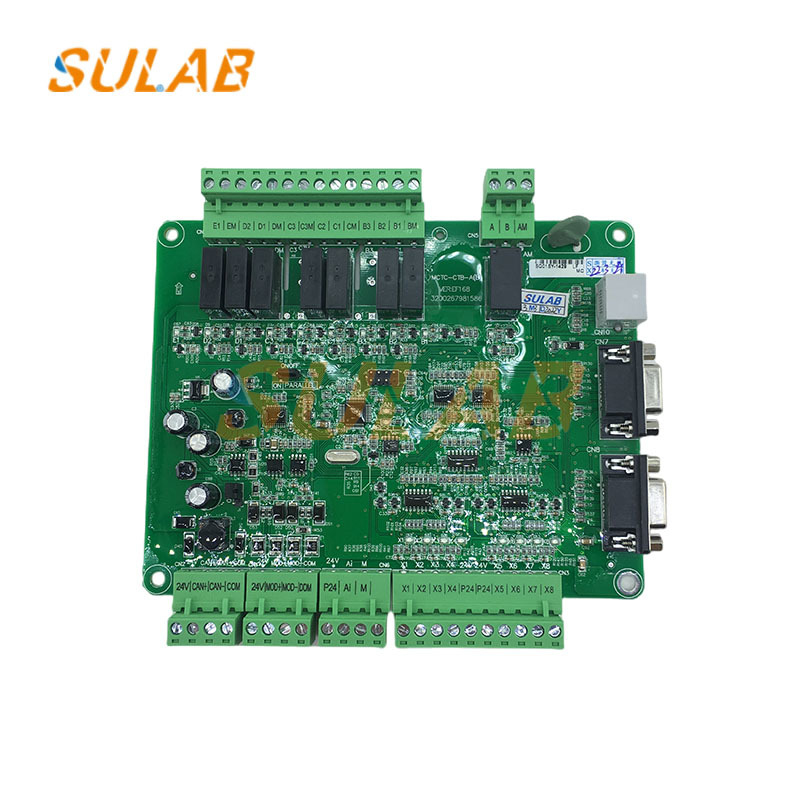

• +24V/CON: External 24VDC power supply for board operation
• CAN+/CAN-: CAN communication interface with main control board
• +24V/COM: 24VDC output for MCTC-HCB in-car display board
• AI-M: Analog weighing signal input (0VDC-10VDC range)
• Multiple digital input terminals including light curtain inputs and door position sensors
• Multiple relay output terminals for door control signals and forced door operations
